ALPHA TECHNOLOGIES is production jewelry equipment, this double head plate rolling mill made by special steel with specific hardness.We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

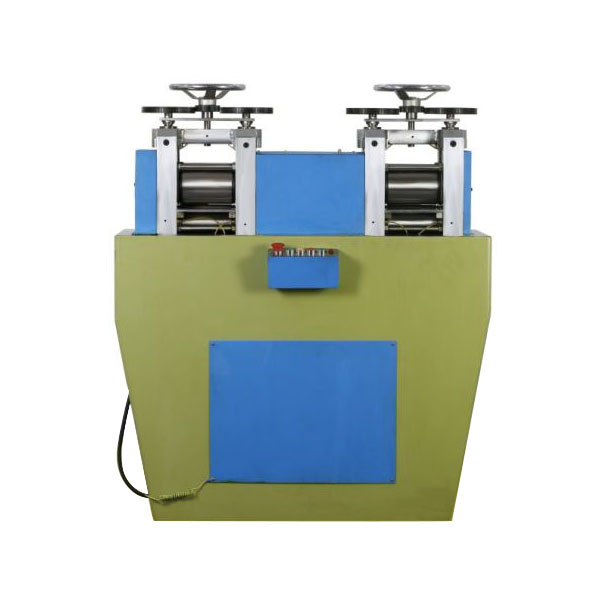

This ALPHA TECHNOLOGIES Double Head Plate Rolling Mill are ideal for industrial production as it has 2cage rolling mills for plate. The structure of the rolling mill is a sturdy electro welded steel frame the cylinders are made of special alloy steel with a surface hardness of 61-64HRC. The reduction gear unit is made of helicoidal steel gears with oil bath lubrication and the rolling mills are driven by a one speed electric motor. On request, electronic speed variable is available too. Double Head Plate Rolling Mill are various versions available allow to satisfy the most diverse production needs, both for roughing and for finishing Slab and Wire.
|
plate parameters |
Input power |
Rated power |
Net weight |
|
160mm-24mm |
380v |
5500w |
985kg |
|
Size |
|
|
|
|
80cm*60cm*150cm |
|
|
|
This Double Head plate Rolling Mill is easy to operate, easy to use, easy to maintain, reliable quality, high precision sheet pressing. This double head plate rolling mill support gold, stainless steel, 18k gold, platinum gold and 925 silver.
